Overview - SNV Germline

The CGAP Pipelines module for germline Single Nucleotide Variants (SNVs) (https://github.com/dbmi-bgm/cgap-pipeline-SNV-germline) processes Whole Genome Sequencing (WGS) and Whole Exome Sequencing (WES) data starting from analysis-ready bam files, and produces g.vcf and vcf files containing SNVs and short Insertions and Deletions (INDELs) as output.

The pipeline supports analysis-ready bam files generated by mapping raw reads from both WGS and WES sequencing runs to hg38/GRCh38 genome build. It can receive the initial bam file(s) from either of the CGAP Upstream modules. The pipeline can also receive vcf file(s) directly as initial input. hg38/GRCh38 vcf file(s) are supported out-of-the box. hg19/GRCh37 vcf file(s) require an extra step to lift-over the coordinates to hg38/GRCh38 genome build (https://github.com/dbmi-bgm/cgap-pipeline-base).

The WGS configuration is designed for a trio analysis with proband diagnosed with a likely monogenic disease. It is optimized for data with 30x coverage and has been tested with data up to 80-90x coverage. It can also be run in proband-only, and family modes. The WES configuration is a recent extension of the WGS pipeline, which allows for the processing of WES data. It is optimized for 90x coverage and tested with data ranging from 20 to 200x coverage.

Docker Images

The Dockerfiles provided in this GitHub repository can be used to build public docker images. If built through portal-pipeline-utils pipeline_deploy command (https://github.com/dbmi-bgm/portal-pipeline-utils), private ECR images will be created for the target AWS account.

The snv_germline_gatk image is primarily for calling and genotyping variants. This image contains (but is not limited to) the following software packages:

  • gatk (4.2.6.1)

The snv_germline_granite image is primarily for filtering and annotating variants. This image contains (but is not limited to) the following software packages:

  • granite (0.2.0)
  • samtools (1.9)

The snv_germline_misc image is primarily for pipeline utilities. This image does not use the base image provided in the CGAP Pipelines main repository, as some of the software requires an older version of Python. This image contains (but is not limited to) the following software packages:

  • python (3.6.8)
  • bamsnap-cgap (0.3.0)
  • peddy (0.4.7)
  • granite (0.2.0)

The snv_germline_tools image is primarily for pipeline utilities. This image contains (but is not limited to) the following software packages:

  • vcftools (0.1.17, 954e607)
  • bcftools (1.11)

The snv_germline_vep image is primarily for annotating variants. This image contains (but is not limited to) the following software packages:

  • vep (101)

Pipeline Flow

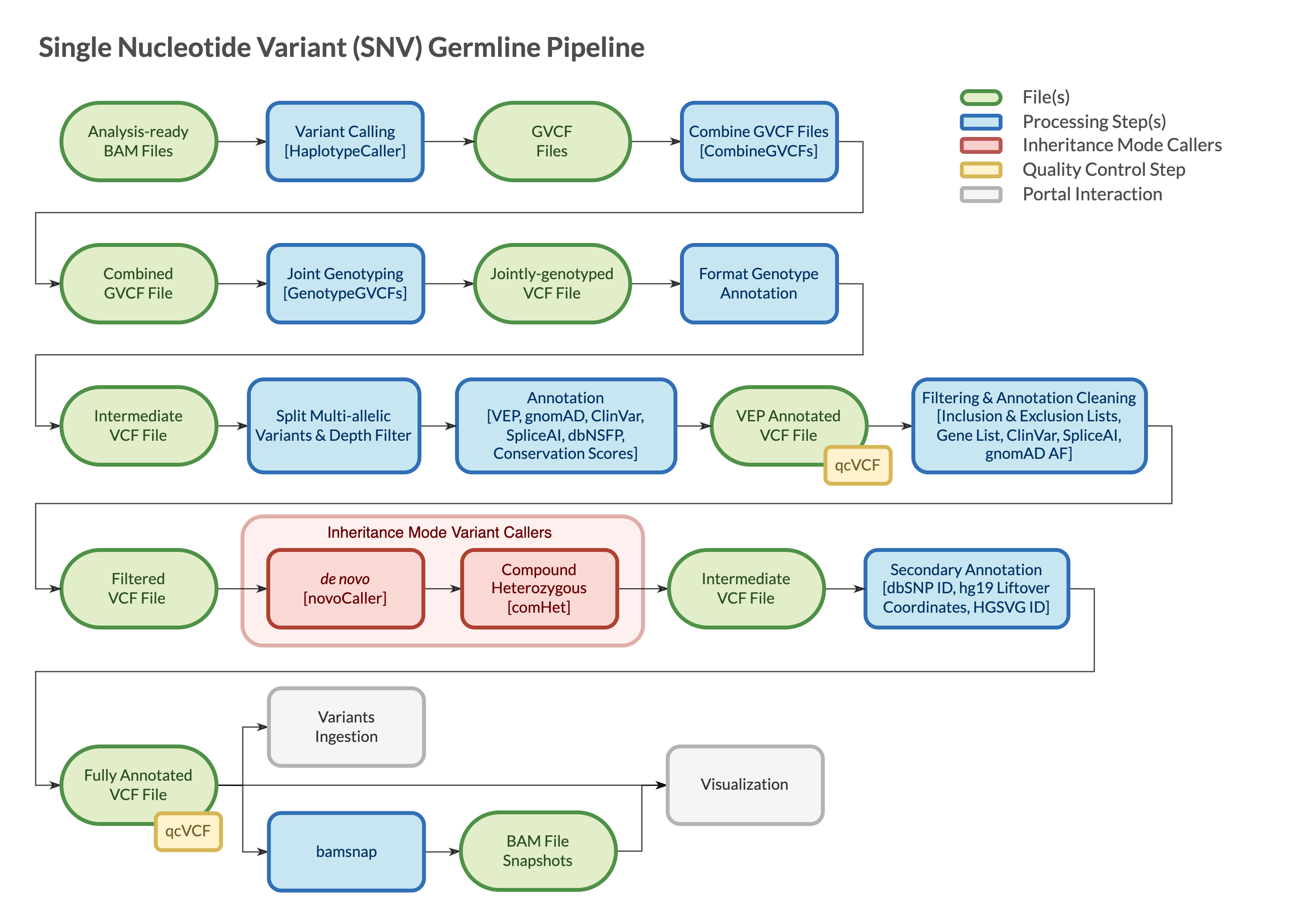

The overall flow of the pipeline is shown below:

../../../_images/SNV_germline_flow.png

Pipeline Parts

Both the WGS and WES configurations of the pipeline are mostly based on GATK4, granite, ensembl-vep and bamsnap and are built following GATK best practices. The pipelines:

  • Call variants per sample
  • Combine the calls to jointly-genotype within a trio or family (if NOT proband-only)
  • Annotate and filter the calls
  • Refine de novo and compound heterozygous calls by running inheritance mode callers
  • Generate snapshot images for the final set of variants

vcf files are checked for integrity using VCFtools vcf-validator at the end of each step during which they are created or modified.
